| TECHNICAL SPECIFICATIONS |

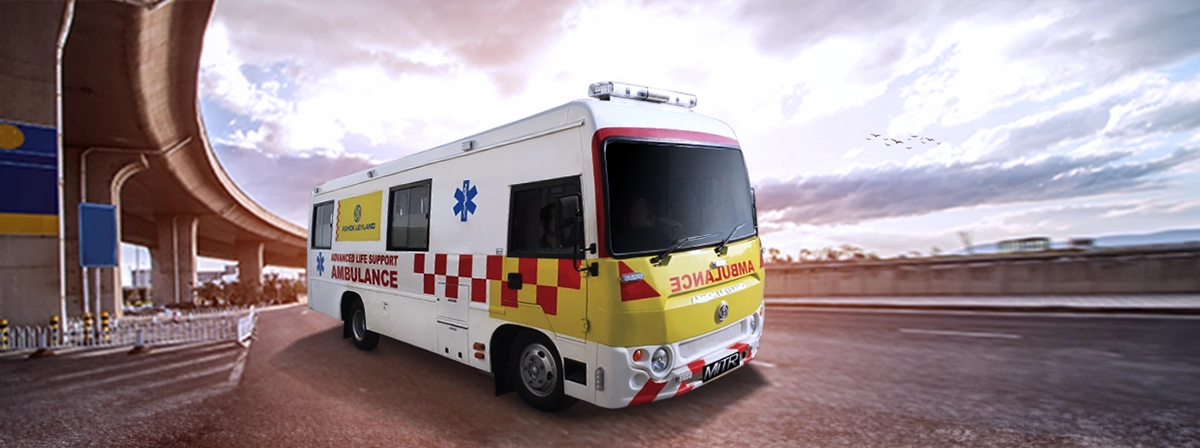

MiTR-3700 MM WB (7 m) |
|
NON AC |
AC |
| SEATING |
|
Seating capacity
|
12 (Driver-1, Co-Driver -1, Doctor-1, Attendant -5 , One Pateint in lying condition -4)
14 (Driver-1, Co-Driver -1, Doctor-1, Attendant -7 , One Pateint in lying condition -4)
15 (Driver-1, Co-Driver -1, Doctor-1, Attendant -8 , One Pateint in lying condition -4)
13 (Driver-1, Co-Driver -1, Doctor-1, Attendant -2 , One Pateint in lying condition -4+4)
|
|
|
|
|
|
| Ambulance Types |
| Available in Type B (AC/NAC), Type C (AC/NAC) & Type D (AC) |
| POWERTRAIN |
| Engine Type |
ZD 30 DDTi Common Rail Diesel Engine |
| Cubic Capacity |
2953 cc |
| Maximum Power output(Hp)@rpm |
140 HP @ 2750 RPM |
| Maximum Torque(Nm) |
360 Nm @ 1350-2750 RPM |
| Clutch Dia(mm) |
310 mm |
| Transmission |
Full Synchronised 5 Speed Manual Gearbox |
| FUEL SYSTEM |
| Fuel Tank Capacity |
90 Ltrs |
| BRAKES |
| Service Brakes |
Dual circuit,Hydraulic with Vacuum Assist |
| Parking Brakes |
Transmission Mounted & Mechanical Linkage & Cable Operated |
| SUSPENSION & TYRES |
| Front & Rear Suspension |
Parabolic Suspension with Double Acting Shock Absorbers |
| No. of Tyres |
Front 2, Rear 4, Spare 1 |
| Tyre Size |
7.00 × 16-14 PR |
| WEIGHT |
| Gross vehicle Weight(Kg) |
6650 |
| DIMENSIONS |
| Wheel Base(mm) |
3700 |
| Overall Dimension(mm) Wide Body(L×W×H) |
7030×2200×2690/2910 |
| Passenger compartment dimension – Internal (L x W XH) in mm |
5070 x 2050 x 1735 |
| Min. Turning Radius(m) |
7.2 |
| Min. Ground Clearance(mm) |
198 |
| ELECTRICALS |
| Electrical Description |
Single Pole 12 V |
| Battery(in Ah)(Non AC/AC) |
75/110 |
| Alternator A(Non AC/AC) |
90/140 |
| AC Compressor Capacity |
NA/220 cc (single compressor) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| TECHNICAL SPECIFICATIONS |
MiTR-4270 MM WB (8 m) |
|
NON AC |
AC |
| SEATING |
|
SEATING CAPACITY
|
2×2(Wide Body)
|
30+A+D(STD,SD)
28+A+D(STD,DD)
|
|
|
SEATING CAPACITY
|
3×3(Wide Body)
|
45+A+D(STD,SD)
42+A+D(STD,DD)
|
|
|
SEATING CAPACITY
|
3×2(Wide Body)
|
38+A+D(STD,SD)
36+A+D(STD,DD)
|
NA
|
|
|
Note:STD-Standard School Seats,HB – Highback seats, SD- Single Door, DD- Double Door, NA- Not Available, A – Assistant, D- Driver
|
|
| POWERTRAIN |
| Engine Type |
ZD 30 DDTi Common Rail Diesel Engine |
| Cubic Capacity |
2953 cc |
| Maximum Power output(Hp)@rpm |
140 HP @ 2750 RPM |
| Maximum Torque(Nm) |
360 Nm @ 1350-2750 RPM |
| Clutch Dia(mm) |
310 mm |
| Transmission |
Full Synchronised 5 Speed Manual Gearbox |
| FUEL SYSTEM |
| Fuel Tank Capacity |
90 |
| BRAKES |
| Service Brakes |
Dual circuit,Hydraulic with Vacuum Assist |
| Parking Brakes |
Transmission Mounted & Mechanical Linkage & Cable Operated |
| SUSPENSION & TYRES |
| Front & Rear Suspension |
Parabolic Suspension with Double Acting Shock Absorbers |
| No. of Tyres |
Front 2, Rear 4, Spare 1 |
| Tyre Size |
7.50 × 16-16 PR |
| WEIGHT |
| Gross vehicle Weight(Kg) |
7200 |
| DIMENSIONS |
| Wheel Base(mm) |
4270 |
| Overall Dimension(mm) Wide Body(L×W×H) |
7970×2200×2630* |
| Passenger Platfrom Height(mm) |
815 |
| Min. Turning Radius(m) |
8.3 |
| Min. Ground Clearance(mm) |
209 |
| ELECTRICALS |
| Electrical Description |
Single Pole 12 V |
| Battery(in Ah)(Non AC/AC) |
75 |
110 |
| Alternator A(Non AC/AC) |
90 |
140 |
| AC Compressor Capacity |
NA |
220 cc+ 160 cc
(Dual Compressor) |
